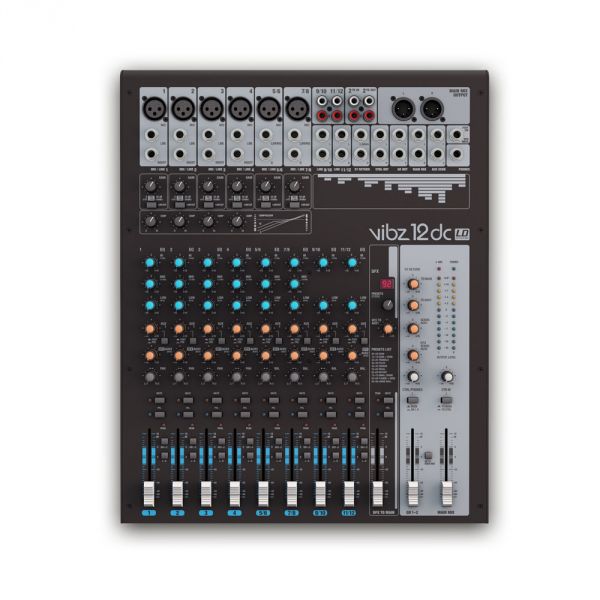

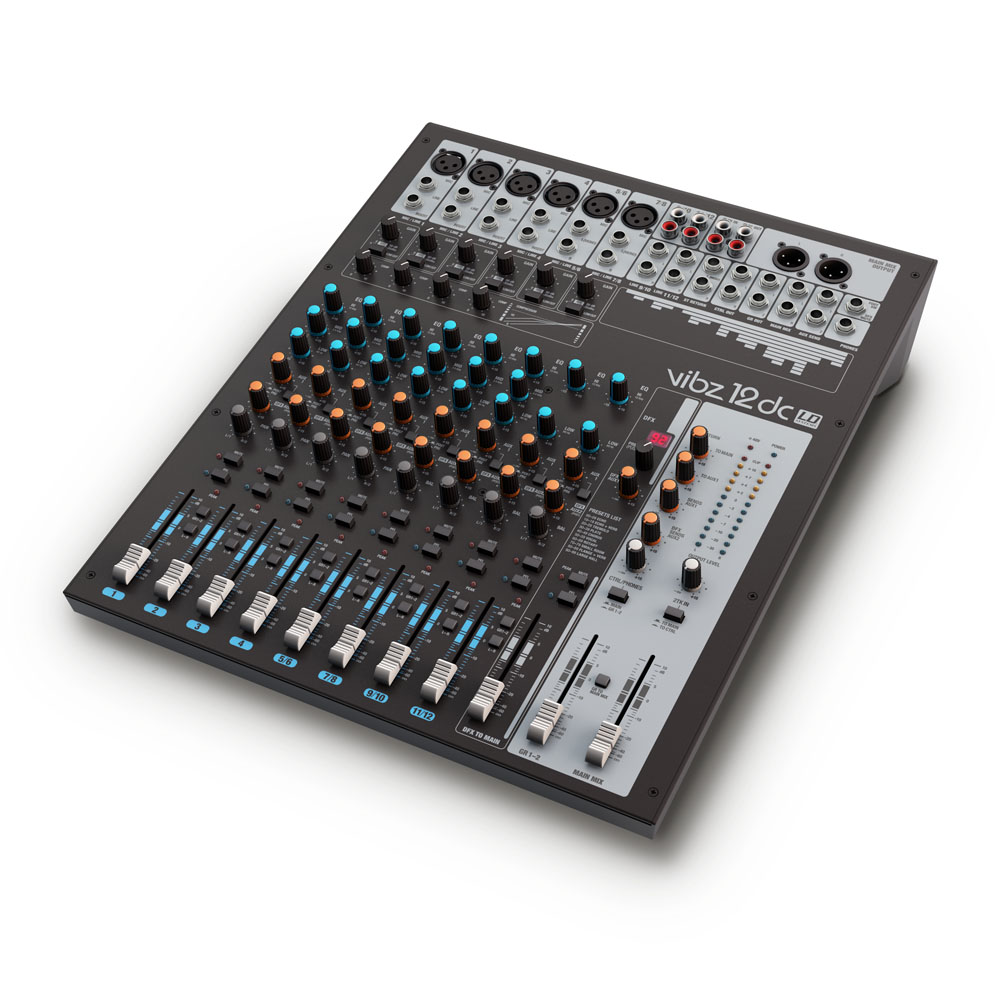

VIBZ 12DC

12 kanalna analogna audio mikser konzola sa digitalnim efekt-procesorom i kompresorima

VIBZ 12 je svestran mikser sa šest balansiranih mikrofonskih ulaza koje odlikuju visokokvalitetna pretpojačala, low-cut filter, 3-band ekvilajzer i fantomsko napajanje.

Četiri mikrofonska kanala mogu biti obrađena posebno koristeći ugrađeni kompresor za efikasnu kontrolu dinamike, druga dva alternativno se mogu koristiti kao stereo line kanali. Ostali stereo kanali opremljeni su sa 2-band ekvilajzerom.

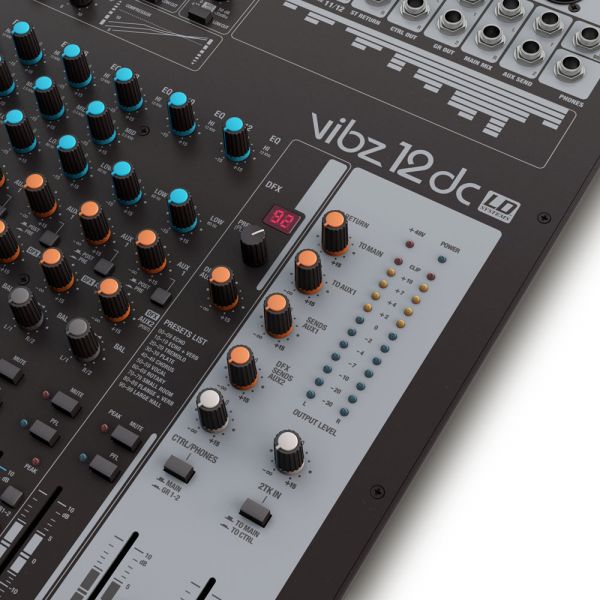

Master sekcija uključuje dve efekt petlje, balansirane XLR izlaze, grupne i monitorske izlaze i jack za slušalice. VIBZ 12 takođe ima RCA konektore za reprodukcione uređaje i uređaje za snimanje i digitalnu efekt sekciju sa 100 preseta.

Sa ključnim odlikama kao što je PFL funkcija ili mute dugmići i sa svojim prirodnim zvukom, VIBZ 12 je savršen izbor za live nastupe, instalacije i zahtevno kućno snimanje.

Specifikacija:

Product type:	Mixer
Type:	Live
Channels:	12

Mono Mic and Line Input Channels:	4
Mono Mic input connectors:	6.3 mm TRS, XLR
Mono Mic Input Type:	electronically balanced
Mono Mic Input Frequency Range:	10 - 45000Hz
Amplification Range mono Mic Input:	0 - 50dB
Mono Mic Input Input THD-N:	0.0058%
Mono Mic Input Impedance:	4kOhm(s)
Mono Mic Input S/N Ratio:	113dB
Mono Line Input Type:	electronically balanced
Mono Line Input Frequency Range:	10 - 45000Hz
Amplification Range mono Line Input:	0 - 50dB
Mono Line Input Input THD-N:	0.0045 %
Mono Line Input Impedance:	21kOhm(s)
Mono Line Input S/N Ratio:	116dB
Mono Channel Equalizer High:	+/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid:	+/- 15 dB @ 2,500 Hz
Mono Channel Equalizer Low:	+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels:	Compressor, AUX 2 (DFX) Post, PFL, Gain, AUX 1 umschaltbar Pre/Post, DFX/AUX 1, 3-band EQ (High, Mid, Low), Low Cut (75 Hz)
Phantom power:	48 V DC switchable

Stereo Line Input Channels:	4
Stereo Line Input Connectors:	RCA, 6.3 mm TRS
Stereo Line Input Type:	unbalanced, electronically balanced
Stereo Line Input Frequency Range:	10 - 45000Hz
Amplification Range stereo Line Input:	0 - 50dB
Stereo Line Input Input THD-N:	0.0045 %
Stereo Line Input Impedance:	3,7kOhm(s)
Stereo Line Input S/N Ratio:	116dB
Stereo channel equalizer treble:	+/- 15 dB @ 12000 Hz
Stereo channel equalizer mids:	+/- 15 dB @ 2500 Hz
Stereo channel equalizer bass:	+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels:	2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX 1 umschaltbar Pre/Post, DFX/AUX 1, AUX 2 (DFX) Post, Balance, Channel Volume, Low Cut, Gain

AUX / Effects Send Channels:	2
AUX / Effects Send Connectors:	6.3 mm TRS
Stereo AUX Return Channels:	1 x stereo
Stereo AUX Return Connectors:	6.3 mm TRS
Stereo Tape Out Channel:	1 x stereo
Stereo Tape Out Connectors:	2 x RCA (Cinch)
Stereo Tape In Channel:	1 x stereo
Stereo Tape In Connenctors:	2 x RCA (Cinch)
Balanced Stereo Main Out:	1
Balanced Stereo Main Out Connectors:	XLR
Balanced Stereo Main Out Impedance:	120Ohm(s)
Max. Balanced Stereo Main Out Level:	23dBu
Stereo Control Room Out:	1
Stereo Control Room Out Connectors:	6.3 mm TRS
Headphones ouput:	1
Headphones outputs:	6.3 mm TRS
Digital Effects Processor:	Yes, 24-bit AD/DA Resolution
Number of Presets:	100
Footswitch Connector DFX Mute:	6.3 mm TRS
Main section controls:	Group 1-2 Volume, CTRL / Phones assignment (Main/Group 1-2), Stereo Return to AUX Volume, Volume Control CTRL / Phones, DFX TO AUX Volume, DFX Mute Schalter, Master Volume, PFL, DFX To Main Volume, presets, 2-track In Volume, Group 1-2 assignment to Main MIX, AUX 2 Send Volume, Phantom Power, Power, Stereo Return to MAIN Volume, 2-track Assignment (Main, Contr. Room)
Indicators:	Power, DFX TO MAIN, PFL, DFX Peak, Phantom Power
Operating voltage:	100 V AC - 240 V AC, 50 - 60 Hz
Width:	350mm
Height:	98mm
Depth:	440mm
Weight:	4.3kg
